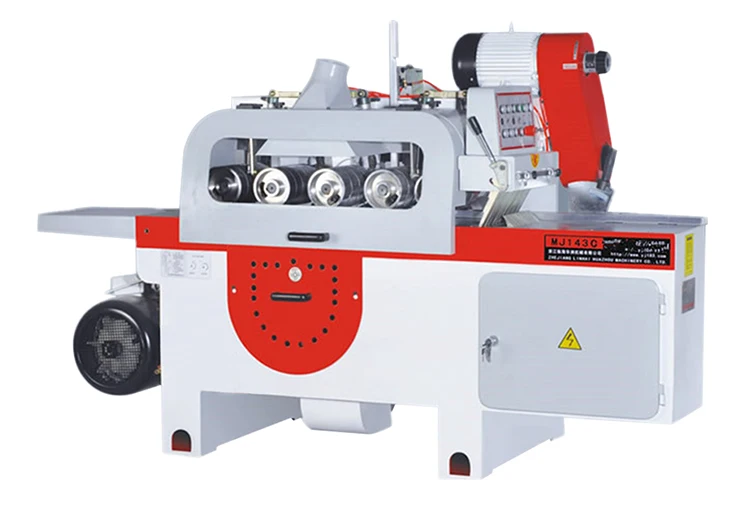

New Style Woodworking Machinery Multi-blade Round Sawing Machine

FOB Reference Price:Get Latest Price
$7,000.00 - $8,000.00 / Set | 1 Set/Sets (Min. Order)
Type:
Other
Model Number:
MJ143C
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Use:
Woodworking
Style:
Horizontal
Place of Origin:
Shandong, China
Brand Name:
KINGISO
Usage:
woodworking/ woodcutting
Voltage:
308V 220V
Dimension(L*W*H):
2300*1080*1400mm
Certification:
ISO&CE
Warranty:
1 year
After-sales Service Provided:
Online support
Application:
woodworking
Working thickness:
10-100mm
Max working width:
250mm
Min working length(continual feeding):
210mm
Feed speed:
6-24m/min
Saw spindle speed:
3600r/min
Main motor power:
22kw
Feed motor:
2.2kw
Total motor power:
25.7kw
Saw frame lifting motor power:
0.75kw
Feeding rack elevating motor power:
0.75kw
Power(W):
25.7kw
Weight:
1600kg
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Stretch film with wooden case or as your request
Port
Qingdao, Shanghai, Guangzhou or as your request
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Hot Sale Products



MH3248X50 cold press.jpg

cold press machine


MJK1327F beam saw.jpg

cnc panel saw





KI400L(1)panel saw machine.jpg

automatic panel saw






edge banding machine




New Style Woodworking Machinery  Multi-blade Round Sawing Machine

Product Description


Application:

Multi blade wood cutting machine is used to cut strips from sheets of wood, plywood,  pressed boards, press board, fiberglass, densified wood or insulation sheets.



Highlights:

1. The feeding is strong and smooth through the upper and bottom feed wheels, the turbine reducer and the gimbal.

2. The feeding speed can be adjusted via the variable frequency speed control or in the stepless way and ensure the flexible adjustment according to the nature of wood

3. The feeding frame can be easily and fast adjusted via the electric lift

4. With the interlock between the saw blade and feeding wheel, it is not necessary to worry about the collision between the two in the lift

5. The principal axis made of special alloy, heat-processed for many times an precisely processed has the feature of high precision an durability.

6. The special structure of the upper and lower anti-kickback device ensures the safety of the operating personal.

7. The patented mist cooling device for saw bits can cool the bits at real time so as to prolong the service lift of saw bits.

8. The special kerf plate mounting makes it easier to fabricate and install the plate

9. The infrared marking device accurately indicates blade position

10. With the keyless pulley tensioner structure, it is easily to install, dismantle, maintain.

11. The de-dusting apparatus for the feeding wheel can ensure smooth feeding by rapidly removing sawdust adhering to the surface of the whee.(Optional)

12. Front and rear auxiliary frame reduces labor intensity.(Optional)

Product Parameter:



Working thickness10-100mm
Max working width 250mm
Min working length(continual feeding)210mm
Feed speed6-24m/min
Saw spindle speed3600r/min
Suitable saw blade diameter(φ200-φ305)xφ50x(2-3.2)mmm
Main motor power22kw
Feed motor2.2kw
Total motor power25.7kw
Saw frame lifting motor power0.75kw
Feeding rack elevating motor power0.75kw
Machine dimension2300x1080x1400mm
Weight1600kg
Detailed Images


Finshed Products


Packing&Service



1.Delivery and Package:
We will take care of your machinery packages well like picture show.
·Our workers will make sure your machine clean before package.
·We will add stretchy film for the whole machine and spare parts for delicate protection.
·We will make export standard strong Wooden box case package as your request.
2.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . more than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
3. Technical support:
·Technical support by Phone, Email ,Wechat, WhatsApp and Skype,24 hours online.
·We provide English version manual.
·Engineer available to service machinery overseas.
4. After sales services:
Our machine is installed and tested well before delivery. You can operation the machine immediately after received machine.
If you don't know how to use the machine,we will offer you free training until you can use machine freely.And If there is still have any question, please contact us by Email, Skype, Phone and Trademanager online service at any time.

why choose us?

why choose.jpgcompany_kingiso.jpgexhibition & kingiso1.jpg
