Heavy-Duty Wide-Belt sanding machine woodworking machinery and high quality

FOB Reference Price:Get Latest Price
$8,000.00 - $9,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
MSK RP-P1300
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
KINGISO
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support
Max working width:
1300mm
Working thickness:
2-110mm(option 2-160mm)
Speed of feed belt:
6-30m/min
Main motor power:
22kw,15kw
Total motor power:
41.74kw
Size of sanding belt:
1330x2200mm
Working air pressure:
>=0.55MPa
Overall dimensions(LxWxH):
2600x1970x1950mm
Weight:
3300kg
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Stretch film with wooden case or as your request
Port
QINGDAO SHANGHAI GUANGZHOU or as your request
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Video Description
Hot Sale Products



MH3248X50 cold press.jpg

cold press machine


MJK1327F beam saw.jpg

cnc panel saw





KI400L(1)panel saw machine.jpg

automatic panel saw






edge banding machine

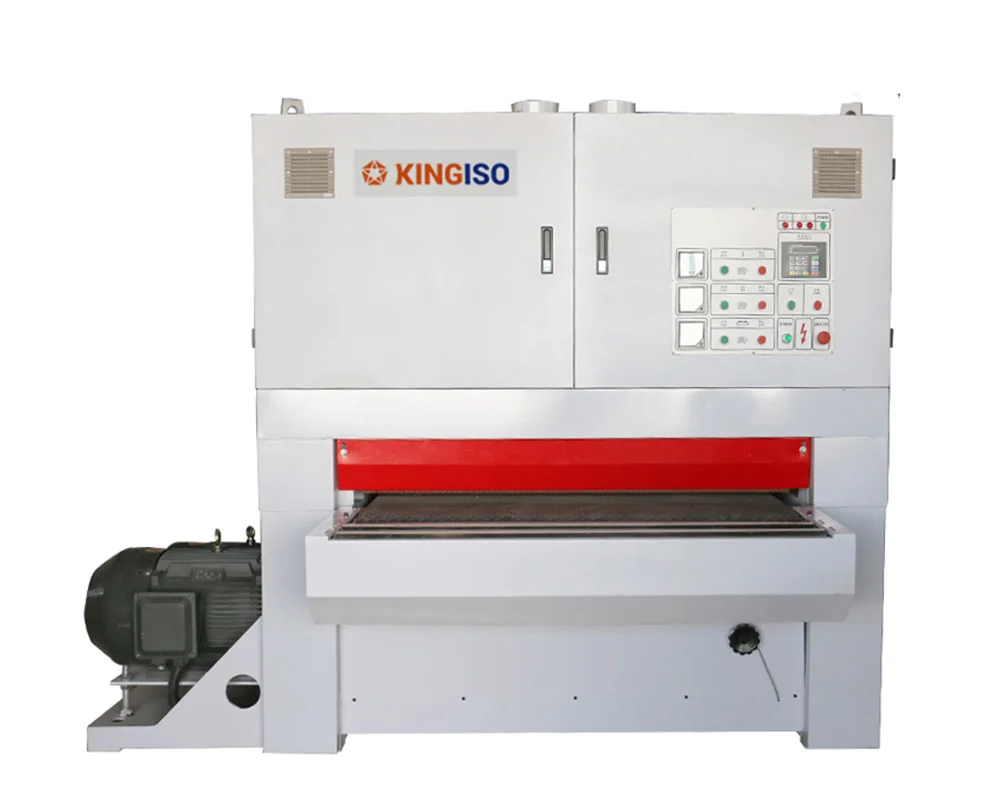

Heavy-Duty Wide-Belt sanding machine woodworking machinery and high quality

Product Description

.jpg

Application:

1.High -gloss lacquer essential models

2.Best of surface sophistication

3.Primer sanding wood and melamine board preferred models.



Features:

1.The machine is designed for sanding primer paint after coating designed for a variety of flat products, especially wood-based tablet, by this machine sanding smooth finish, no white edges.

2.The body plate bending welding, heavy, stable, and annealed, long-term will not be deformed.

3. Belt operation with frequency control imported converter, for a variety of paint properties of the belt used in photoelectric control.

4.The feeding speed adopts stepless speed control(Frequency controller is optional). Table lifting adopts four-column lifting mechanism, without shaking, a small error.

5.Automatic Thickness Measurement Systems(Optional).

6.Front and back double emergency knob, can control the machine to urgently stop within 3-5 Seconds.

7.Photoelectricity Switch Blower adopt import photo electric travel switch blower automatic,the sanding belt oscillating.

8.Sanding paper swing controlled by air power, swing is smooth and even.

9.Electric parts are all famous brand at home and abroad.



Advantage:

1.   Faults Display fitted (sanding paper right and left deviation, inadequate air pressure, emergency knob, over thickness work piece). It’s easy to judge basic equipment trouble. Faults emergency stop adopts automatically descend protection facility, the panel surface won’t be damaged from emergency stop.

2.Use branded conveyor, grinding duration is 3-5 times as ordinary conveyor.

3.Conveyor speed adjusted by stepless speed control (frequency controller is optional), easy adjusting. It can be adjusted as per the work piece in processing to improve sanding quality.

4.Conveyor use marble material, its shape won’t be changed because of temperature.

Precision and grinding duration is higher than steel conveyor.

5.The safety device: On the control panel has an emergency stop button (latching), left and right side in the sand shelf containing two photoelectric switch; relay pressure in low pressure pneumatic system operation, equipped with disc brakes on the motor pulley to parking brake to ensure rapid emergency occurs.

6.The unique suction device, so that a better cleaning effect.

Product Parameter:



Max working width1300mm
Working thickness2-110mm(option 2-160mm)
Speed of feed belt6-30m/min
Main motor power22kw,15kw
Total motor power41.74kw
Size of sanding belt1330x2200mm
Working air pressure>=0.55MPa
Consumption of compressed air1.5m³/min
Suction average wind speed25-30m/s
Overall dimensions(LxWxH)2600x1970x1950mm
Weight3300kg
Detailed Images


Finshed Products


Packing&Service



1.Delivery and Package:
We will take care of your machinery packages well like picture show.
·Our workers will make sure your machine clean before package.
·We will add stretchy film for the whole machine and spare parts for delicate protection.
·We will make export standard strong Wooden box case package as your request.
2.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . more than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
3. Technical support:
·Technical support by Phone, Email ,Wechat, WhatsApp and Skype,24 hours online.
·We provide English version manual.
·Engineer available to service machinery overseas.
4. After sales services:
Our machine is installed and tested well before delivery. You can operation the machine immediately after received machine.
If you don't know how to use the machine,we will offer you free training until you can use machine freely.And If there is still have any question, please contact us by Email, Skype, Phone and Trademanager online service at any time.
