vertical panel saw for aluminum composite

FOB Reference Price:Get Latest Price
$3,000.00 - $4,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Use:
Woodworking
Style:
Vertical
Place of Origin:
Shandong, China
Brand Name:
KINGISO
Model Number:
MJ400L
Usage:
Wood Cutting
Voltage:
380V/50HZ
Dimension(L*W*H):
2020*1170*1120mm
Certification:
CE ISO
Sliding Table Size:
3200*390*223mm
Max.Sliding Length:
3200mm
Max.Sliding Thickness at 90degree:
140mm
Max.Sliding Thickness at 45degree:
97mm
Max.Ripping Width:
1270mm
Max.Sliding Width:
3200mm
Blade Tile:
0-45degree
Main Blade Size:
350(400)*30mm
Scoring Speed(rpm):
8500rpm
Scoring Power(kw):
0.75kw
Weight:
930kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Power(W):
5.5kw
Type:
Table Panel Saw
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
stretch film with wooden case or as your request
Port
Qingdao/Shanghai/Gangzhou
Lead Time :
25 days after receiving prepayment
hot sale product

edge bander

electronic saws

 Engraving machine

Laminating machine

 vertical panel saw for aluminum composite

Product Description

1.Application:

Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels,organic glass plates and solid wood and others with wood structure and similar hardness.

2.Feature:

1.Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.

2.With oxidation treatment, movable table surface is beautiful and hard wearing.

3.Manual titling and up/down for saw blade.

4.Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.

3.Advantages:

(1).We make the machine aggravating in order to improve equipment stability and is much heavier than ordinary ones and running more stable.

(2).The saw axis is equipped after two dynamic balance so it is much more life-saving and high precision.

(3).Movable table guide track is plating chromium steel bars structure,exact and durable.

(4).High precision and can reach 0.05mm.and the cutting surface is smoother without jagged

(5).Electrical seal,preventing saw dust and objects from entering.

(6).CE and ISO Certificate

(7).Low noise and low consuming;

(8).The most important:good after-sale services is our strength.

B1.Application:

The machine is equipped with heavy duty cast iron trunnion,featured with high precision and durability. It is suitable for the applications such as different fiberboards,flake boards,wood-based panels,ABS boards,PVC boards,acryl glass board and the solid wood etc,or the panels with similar hardness.

B3 Advantage:

1. The extra heavy products, making the work more stable.

2. A tiny saw screw rising, making the saw more stable.

3. Electrical seal, preventing saw dust etc., objects from entering.

4.CE and ISO Certificate

4.Technical parameters

Model MJ400L
Sliding Table Size3200*390*223mm
Max.Sliding Length3200mm
Max.Sliding Thickness at 90degree140mm
Max.Sliding Thickness at 45degree97mm
Max.Ripping Width3200mm
Max.Sliding Width1270mm
Blade Tile0-45degree
Main Blade Size350(400)*30mm
Scoring Speed(rpm)8500rpm
Power(kw)5.5kw
Scoring Power(kw)0.75kw
Blade up-down Power(kw)0.12kw
Blade Tile Power N/A
Weight(kg)930kg
Dimension2020*1170*1120mm

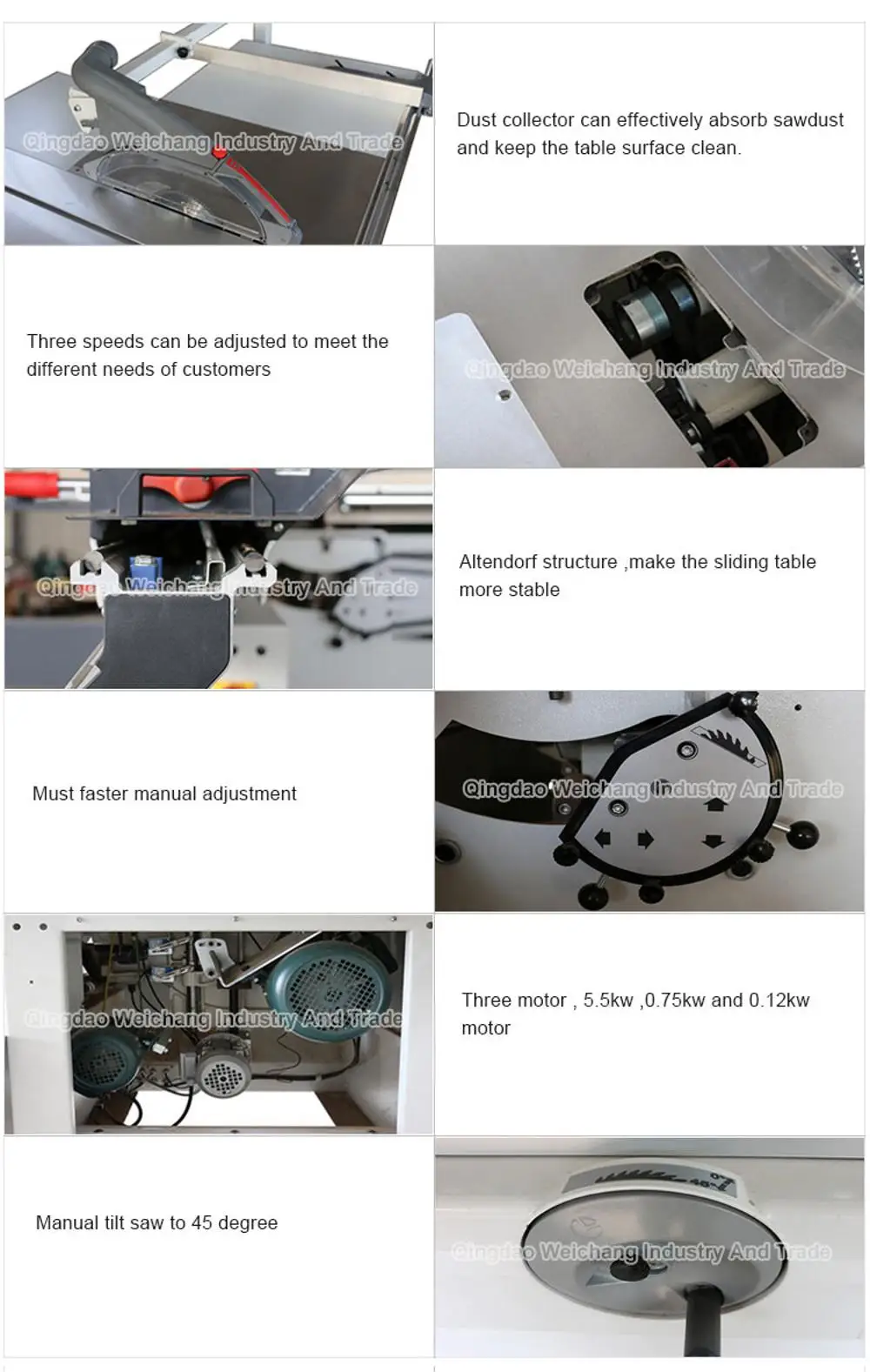

Detailed Images







Finished Products



packing and service

1.Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
