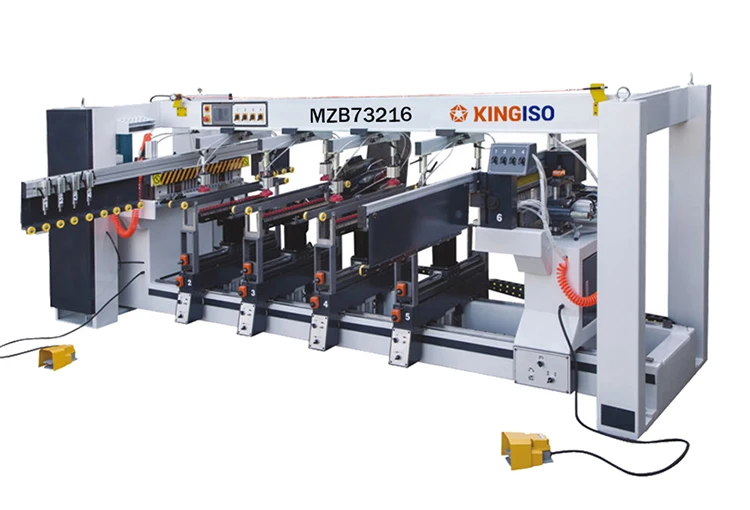

MZB73216 Six Row multi-axle woodworking driller for Panel Drill

FOB Reference Price:Get Latest Price
$9,000.00 - $13,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
MZB73216
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Drilling Machine
Place of Origin:
Shandong, China
Brand Name:
Kingiso
Voltage:
380v 50Hz
Dimension(L*W*H):
3800*2500*1600mm
Certification:
CE ISO
Warranty:
12 Months
Color:
White
Max.drill dia:
35mm
Max.boring depth:
60mm
Max dimensions of pieces to be drilled:
2450x640x80mm
Max.depth of tiltable head:
2850mm
Numbers of spindle:
21*6
Spindle speed:
2840r/min
Installed power:
1.5kw*6
Air pressure:
6-8kg/square cm
Net weight:
2200kg
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
1.5kw*6
Weight:
2200kg
Supply Ability
Supply Ability:
100 Set/Sets per Month MZB73216 Six Row multi-axle woodworking driller
Packaging & Delivery
Packaging Details
Stretch film with wooden case or as your request
Port
Qingdao Shanghai Guangzhou or as your request
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 To be negotiated

MZB73216 Six Row multi-axle woodworking driller for Panel Drill

Product Description


Application:

Suitable for all kinds of MDF, particleboard, plywood, PVC board, plexiglass, and solid wood plate drilling;

Multi axis woodworking drilling machine can fine to help you build furniture, wood, etc., you can save your manpower and material resources, so that you put more down.



Features:

1.Adopting brand touch screen and PLC industrial control system, it is powerful and has low failure rate.

2.The machine body use the steel structure and get heating treatment, it will not deformation after long time

3.The digital display of the machine travel, make the job position more precision

4.Linear guide from Taiwan brand,very accuracy

5.All the drill bit use the quick coupling, easy to replace

6.The drill depth and drill distance all depend on the inductive switch ,make the job quick and precision.



Advantage:

1.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.

2.One-button control panel, operate easily.



Parameters:

Max.drill dia35mm
Max.boring depth60mm
Max dimensions of pieces to be drilled2450x640x80mm
Max.processing length of horizontal head2450mm
Max.processing length of vertical head2850mm
Max.depth of tiltable head2850mm
Max.separation of vertical spindle head640mm
Min length between vertical spindle heads140mm
Numbers of spindle21*6
Spindle speed2840r/min
Installed power1.5kw×6
Air pressure6-8kg/cm²
Suitable voltage380V 50HZ
Min center distance between spindles32mm
Rotation of spindle360º
Overall size3800*2500*1600mm
Net weight2200kg
Detailed Images

Finshed Products




Packing&Service


1.Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5. After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
